Valves
Gate Valves - Resilient Seat
CIVILPIPES offers an extensive range of BETTA resilient seated gate valves that are certified to AS/NZS 2638.2.
The gate valves are suitable for use in potable water, non-potable water and wastewater systems installed above ground and below ground.
Betta gate valves are designed as pipeline isolation points, to be operated in either the fully open or fully closed positions, and are not suitable for throttling applications.
The high strength and corrosion resistant materials provide long life protection and the EPDM encapsulated ductile iron wedge ensures a drip tight seal.
Options include:
Anti-clockwise closing and clockwise closing,
Rising spindle option for above ground fire services,
Actuators - Handwheel and gearbox options,
Valve extension spindles,
Valve anchors - SS straps and Anchor legs

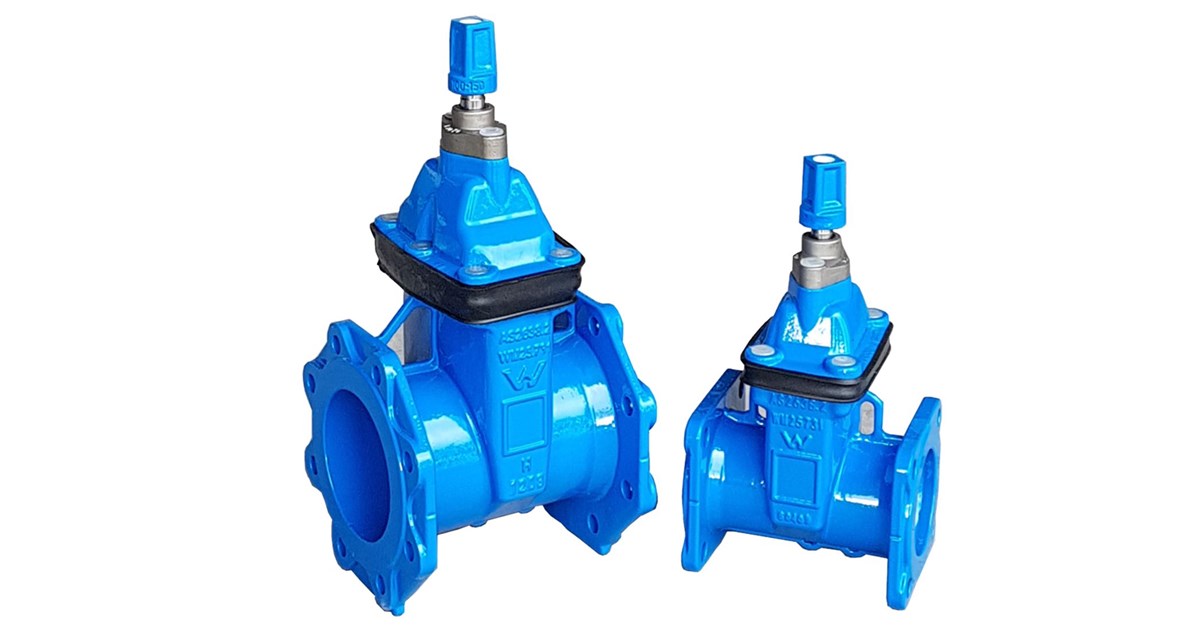

VGF - Betta Flange PN16
The VGF Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 50 – DN 400 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16) |
VGFI - Betta Flange ISO Mount PN16
The VGFI Series model with ISO flange is designed to be operated by a mounted gearbox actuator.
Standard |
AS 2638.2 |
|---|---|
Size Range |
DN 80 – DN 600 AS/NZS 2638.2 (WSAA Appraised)
DN 750 - DN1200 AS/NZS 2638.2, EN558-1 Dimensions |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16) |
Actuator Flange |
ISO 5211 Mounting Flange F10, F14, F16, F25 |
Technical Documents

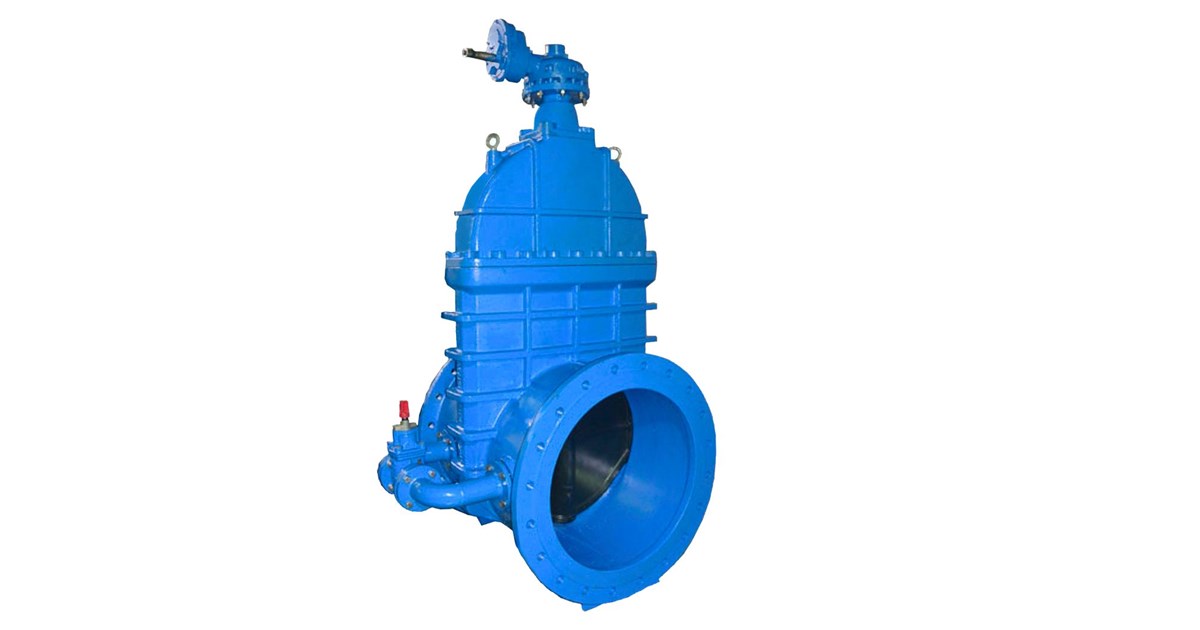

VGFB - Betta Flange Bypass PN16
The VGFB Series model with ISO flange is designed to be operated by a mounted gearbox actuator or manual actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 450 – DN 600 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16) |
Actuator Flange |
F16 ISO 5211 Flange |
Bypass Valve |
Resilient Seat PN16 AS 2638.2 |
VGFH - Betta Flange PN25
The VGFH Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 80 – DN 200 |
Pressures |
Operating Pressure 2500 kPa (PN 25)
Test Pressure – Seal 2750 kPa Test Pressure – Body 3750 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 2129 Table F) |
VGS - Betta Socket PN16
The VGS Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 100 – DN 375 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Socket (AS/NZS 2280) |
VGSF - Betta Socket Flange PN16
The VGSF Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 100 – DN 150 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16), Socket (AS/NZS 2280) |
VGP - Betta Spigot PN16
The VGP Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 100 – DN 150 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Spigot (AS/NZS 2280) |
VGG - Betta PE Restraint PN16
The VGG Series model with stem cap is designed to be operated by handwheel or handheld portable actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
OD 90 – OD 280 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Mechanical Restraint for PE |
VGO - Betta Rising Spindle PN16
Standard |
AS 2638.2 |
|---|---|
Size Range |
DN 80 - DN 300 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 40 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16), (AS 2129 T/E) |
Actuation |
Handwheel - Clockwise closing |
Betta BF Actuators
CIVILPIPES offers an extensive range of BETTA BF manual and electric actuators that comply with the performance requirements of resilient seated gate valves to AS/NZS 2638.2.
The actuators are suitable for use with Betta Gate Valves and other valve types requiring linear motion for thrust and torque applications.
Many combination options are available that provide the flexibility to meet even the most complex configurations. Contact CIVILPIPES for further details.
Standard |
AS/NZS 2638 performance compliance |
|---|---|
BSG Series |
SPUR MULTI-TURN MANUAL GEARBOX
Output Torque - 800 to 50,000 Nm, Output Flange - ISO 5211 (F10 – F48), Actuation - Handwheel or Portable Actuator, Gear Reduction - 2:1 to 24:1 |
603 Series |
BEVEL MULTI-TURN MANUAL GEARBOX
Output Torque - 300 to 5,000 Nm, Output flange - ISO 5211 (F10 – F35), Actuation - Handwheel or Portable Actuator, Gear Reduction - 3:1 to 6:1 |
903 Series |
ELECTRIC MULTI-TURN ACTUATORS
Output Torque - 50 to 5,000 Nm, Output Flange - ISO 5211 (F07 – F48), Actuation - 3 Phase 380V, 240VAC or 24 VDC |
Temperature |
-20 deg C to 70 deg C |
Protection |
IP 65, IP 67 and IP 68 options available
Coating options – FBE or High Build epoxy |
Valve Extension Spindles
Application |
Valve extension spindles are used to raise the gate valve cap to a position that provides ease of operation. |
|---|---|
Extension Range |
100mm to 2000mm
(Other sizes available on request) |
Valve Range |
Extensions spindles are compatible with gate valves
DN80 – DN600 |
Compliance |
Manufactured to comply with AS/NZS 2638 |
Material |
High strength ductile iron to AS 1831
Galvanised coated to AS 4680 |
Technical Documents
Stainless Steel Straps
Application |
Stainless steel straps are used to anchor valves and pipeline components as determined by the water industry authorities. |
|---|---|
Size Range |
DN100 - DN375 |
Technical Documents
Valve Anchor Legs
Application |
Anchor Legs are designed to secure AS/NZS 2638 gates valves and restraint pipeline thrust. |
|---|---|
Size Range |
Suits Valve sizes DN100 and DN150 |
