Gate Valves - Resilient Seat

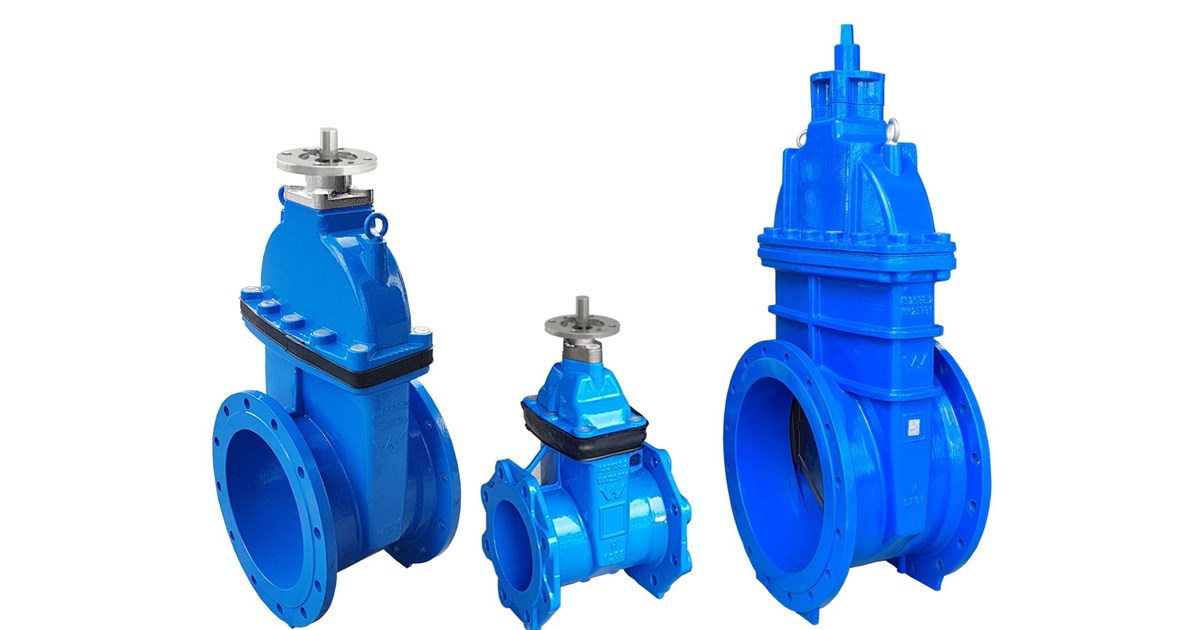

VGFI - Betta Flange ISO Mount PN16
The VGFI Series model with ISO flange is designed to be operated by a mounted gearbox actuator.
Standard |
AS 2638.2 |
|---|---|
Seal Type |
Resilient Seat |
Size Range |
DN 80 – DN 600 AS/NZS 2638.2 (WSAA Appraised)
DN 750 - DN1200 AS/NZS 2638.2, EN558-1 Dimensions |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16) |
Actuator Flange |
ISO 5211 Mounting Flange F10, F14, F16, F25 |
Features
- High strength and corrosion resistant materials
- EPDM encapsulated ductile iron wedge ensures effective sealing
- Full bore design eliminates blockages
- Anti-friction components for lower operating torques
