Gate Valves - Resilient Seat

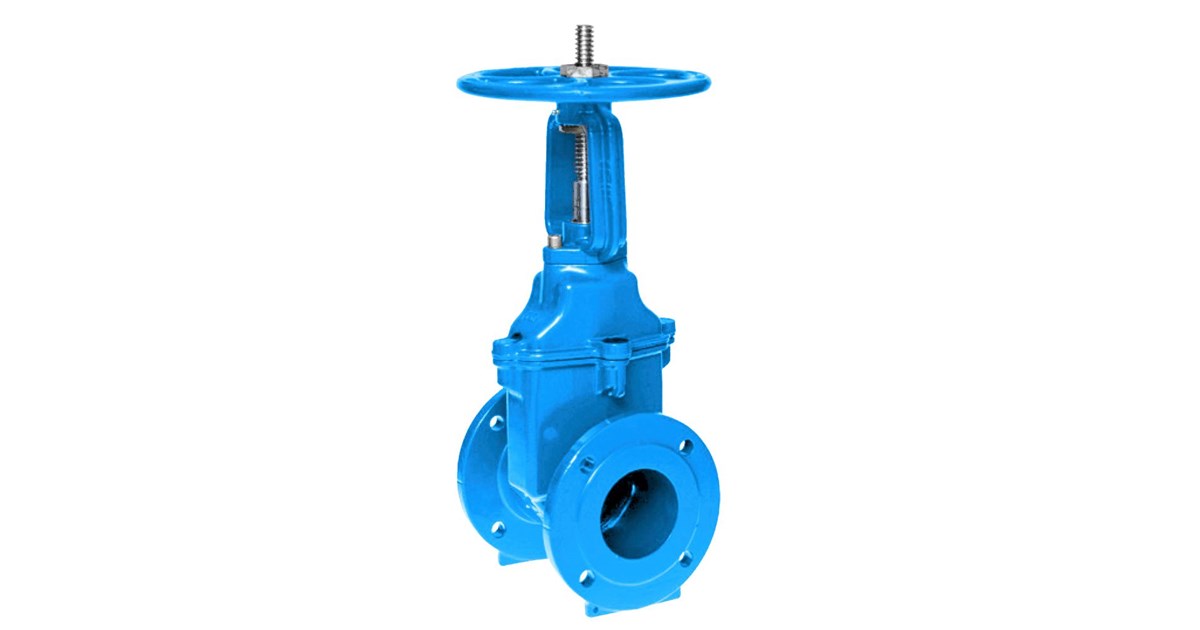

VGO - Rising Spindle PN16
Standard |
AS 2638.2 |
---|---|
Size Range |
DN 80 - DN 300 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 40 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16), (AS 2129 T/E) |
Actuation |
Handwheel - Clockwise closing |
Features
- High strength and corrosion resistant materials
- EPDM encapsulated ductile iron wedge ensures effective sealing
- Full bore design eliminates blockages
- Anti-friction components for lower operating torques
