Gate Valves - Resilient Seat

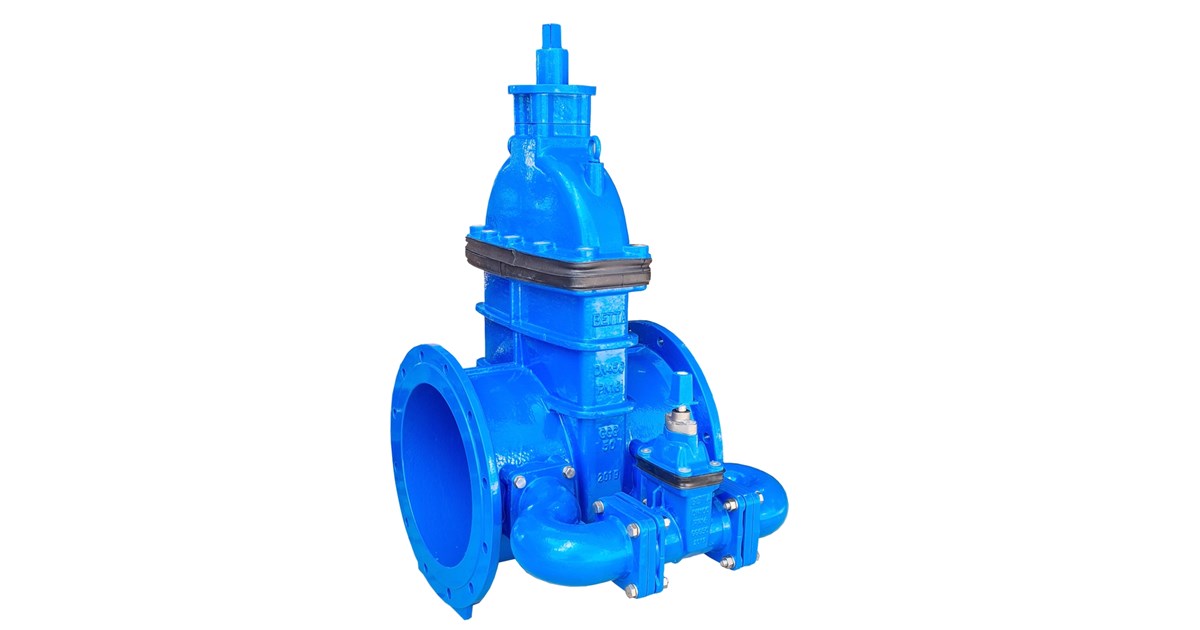

VGFB - Betta Flange Bypass PN16
The VGFB Series model with ISO flange is designed to be operated by a mounted gearbox actuator or manual actuator.
Standard |
AS 2638.2 (WSAA Appraised) |
|---|---|
Size Range |
DN 450 – DN 600 |
Pressures |
Operating Pressure 1600 kPa (PN 16)
Test Pressure – Seal 1760 kPa Test Pressure – Body 2400 kPa |
Temperature |
Max 80 deg C |
Coating |
Fusion Bonded coating to AS/NZS 4158 |
End connections |
Flange (AS 4087, PN16) |
Actuator Flange |
F16 ISO 5211 Flange |
Bypass Valve |
Resilient Seat PN16 AS 2638.2 |
Features
- High strength and corrosion resistant materials
- EPDM encapsulated ductile iron wedge ensures effective sealing
- Full bore design eliminates blockages
- Anti-friction components for lower operating torques
