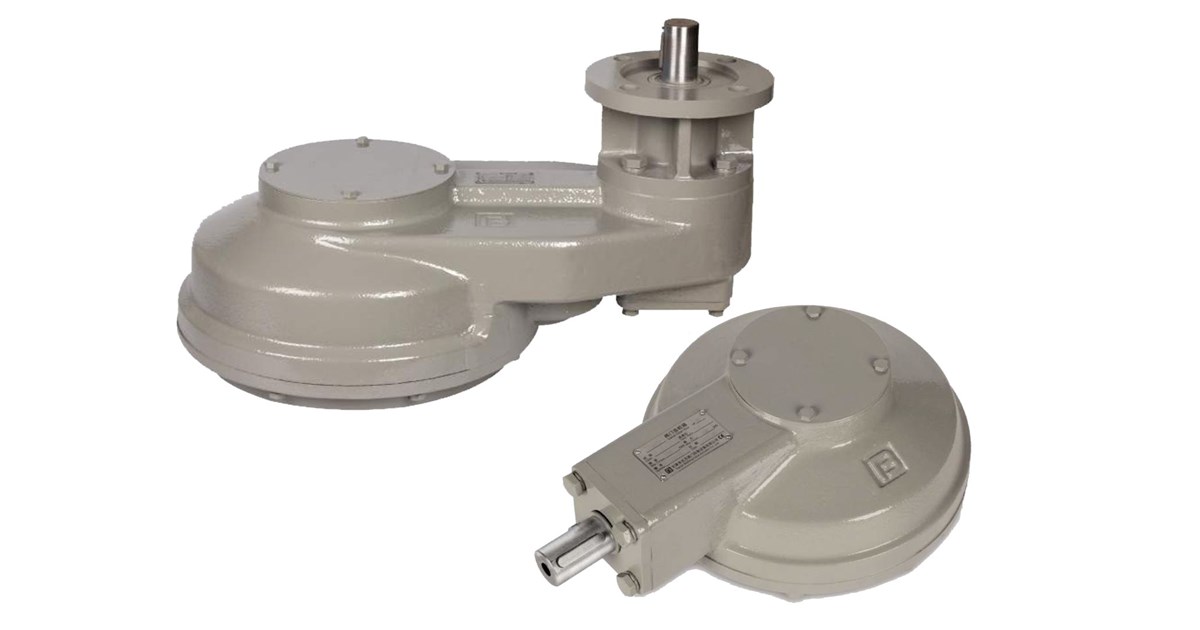

Betta BF Actuators
CIVILPIPES offers an extensive range of BETTA BF manual and electric actuators that comply with the performance requirements of resilient seated gate valves to AS/NZS 2638.2.
The actuators are suitable for use with Betta Gate Valves and other valve types requiring linear motion for thrust and torque applications.
Many combination options are available that provide the flexibility to meet even the most complex configurations. Contact CIVILPIPES for further details.
Standard |
AS/NZS 2638 performance compliance |
|---|---|
BSG Series |
SPUR MULTI-TURN MANUAL GEARBOX
Output Torque - 800 to 50,000 Nm, Output Flange - ISO 5211 (F10 – F48), Actuation - Handwheel or Portable Actuator, Gear Reduction - 2:1 to 24:1 |
603 Series |
BEVEL MULTI-TURN MANUAL GEARBOX
Output Torque - 300 to 5,000 Nm, Output flange - ISO 5211 (F10 – F35), Actuation - Handwheel or Portable Actuator, Gear Reduction - 3:1 to 6:1 |
903 Series |
ELECTRIC MULTI-TURN ACTUATORS
Output Torque - 50 to 5,000 Nm, Output Flange - ISO 5211 (F07 – F48), Actuation - 3 Phase 380V, 240VAC or 24 VDC |
Temperature |
-20 deg C to 70 deg C |
Protection |
IP 65, IP 67 and IP 68 options available
Coating options – FBE or High Build epoxy |
Features
- COMBINATION assemblies - BSG, 603 and 903 can be configured in combination to provide an extensive range of input actuation options.
- High efficiency for maximum mechanical advantage
- Heavy duty gears and bearings supporting both radial & axial thrust loads
- Range of gear reduction ratios available
- Horizontal and vertical inputs – Single or Dual
