Streetware
CIVILPIPES supply an extensive range of streetware products including valve, hydrant & meter cover boxes and markers.
All products comply with the requirements of relevant nation codes and Australian standards; however, it is important to note that each local authority produce guidelines that determines the component configuration for streetware covers and markers.
Contact our technical staff if you are seeking advice regarding product selection.

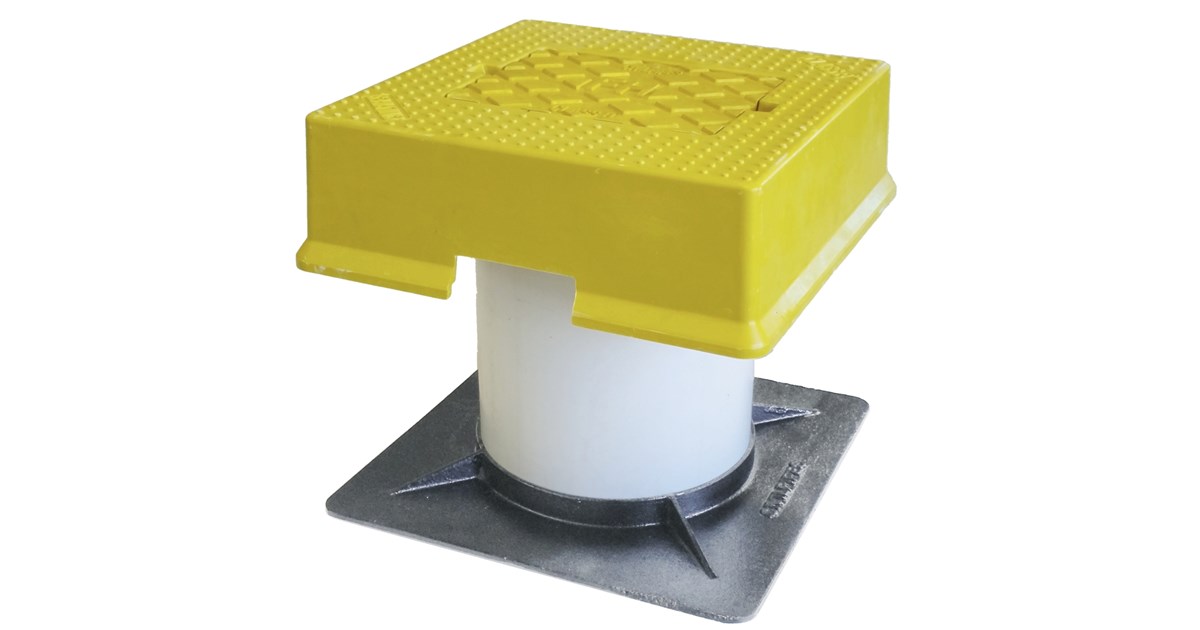

Class B - Cover Boxes
CIVILPIPES offers a range of Class B load rated cover box assembles to AS/NZS 3996 that are suitable for valve and hydrant installations in non-trafficable applications.
Load Rating |
Class B to AS/NZS 3996 |
|---|---|
Cover Box |
Recycled plastic or Composite compound material |
DI Lid |
Ductile Iron Gr500/7, Bitumen coated or FBE |
Shroud pipe |
DN 225 PVC Pipe (250 OD) - length to suit |
Base Plate |
Cast Iron Gr 250, bitumen coated AS/NZS 3750.9 |

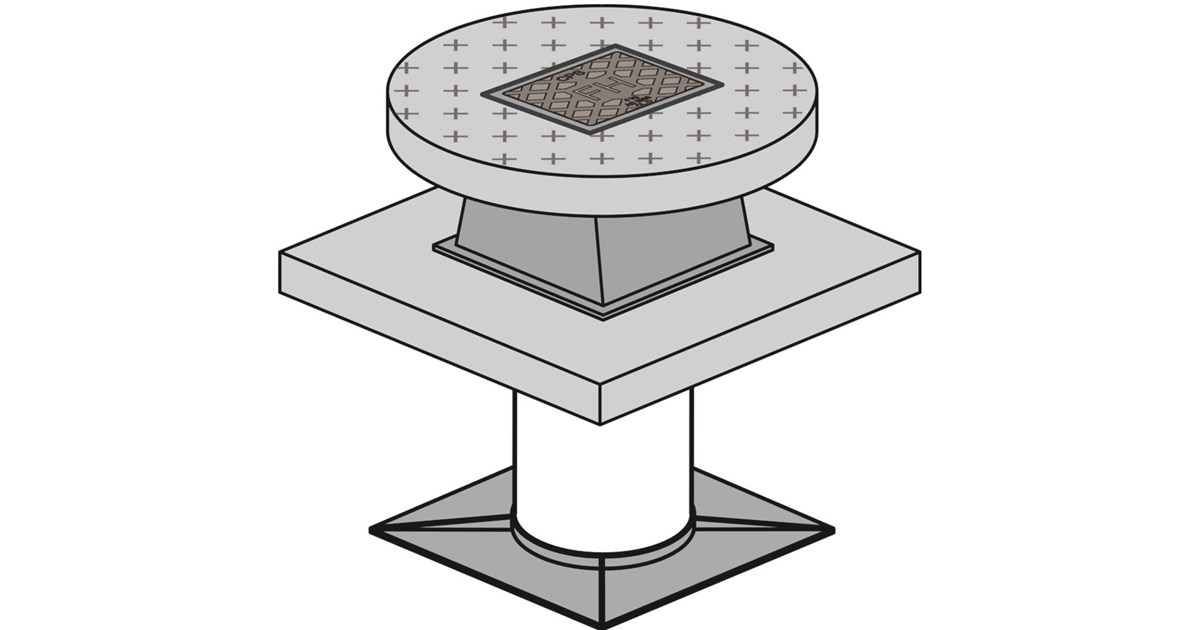

Class D - Cover Boxes
CIVILPIPES offers a range of Class D load rated cover box assembles to AS/NZS 3996 that are suitable for valve and hydrant installations in trafficable applications.
Load Rating |
Class D to AS/NZS 3996 |
|---|---|
Cover Box |
Hydrant box - Cast Iron Gr250, Bitumen coated |
DI Lid |
Ductile Iron Gr500/7, Bitumen coated or FBE |
Surrounds |
Concrete Lid Surround and Concrete Hydrant base |
Shroud pipe |
DN 225 PVC Pipe (250 OD) - length to suit |
Base Plate |
Cast Iron Gr250, Bitumen coated |

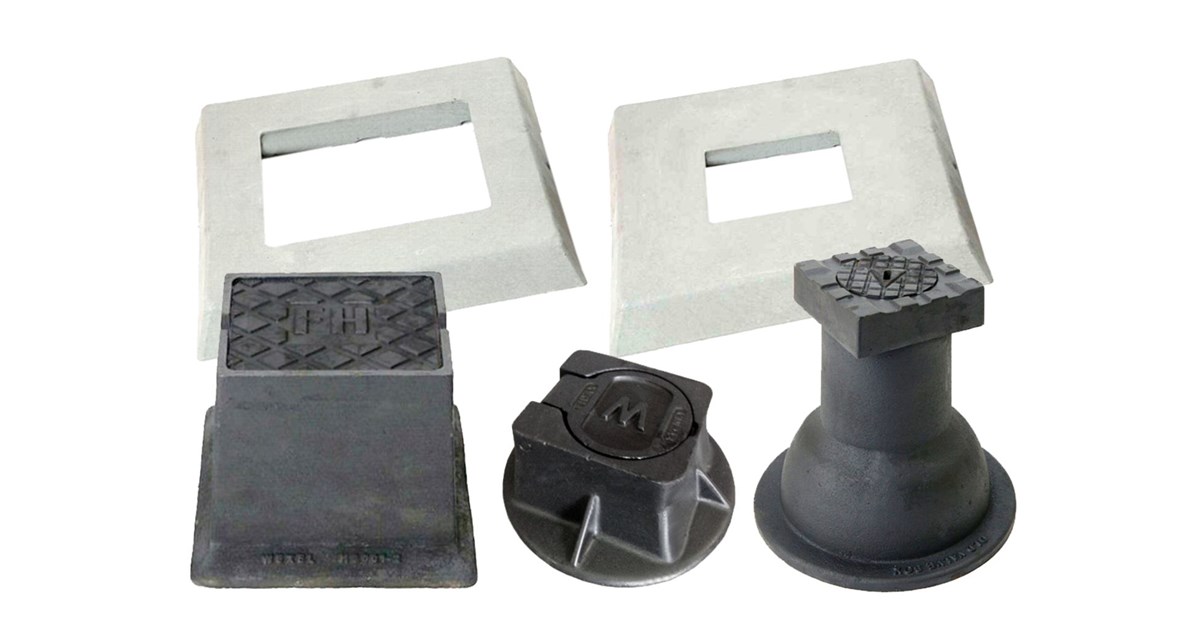

Cast Iron Cover Boxes
CIVILPIPES offers a range of cast iron valve and hydrant boxes for infrastructure, industrial and commercial applications.
Technical Documents

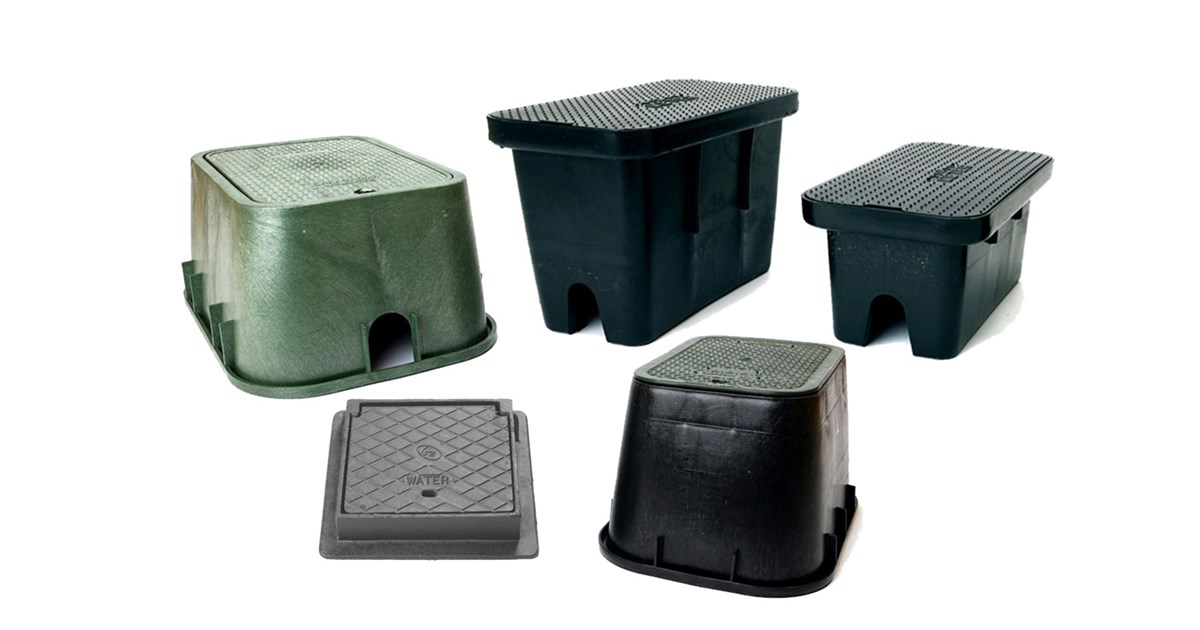

Meter Boxes
Meter installations can vary from local authority region to region, and each authority will determine the meter and pipework configuration for domestic, multi-dwelling, commercial and industrial applications.

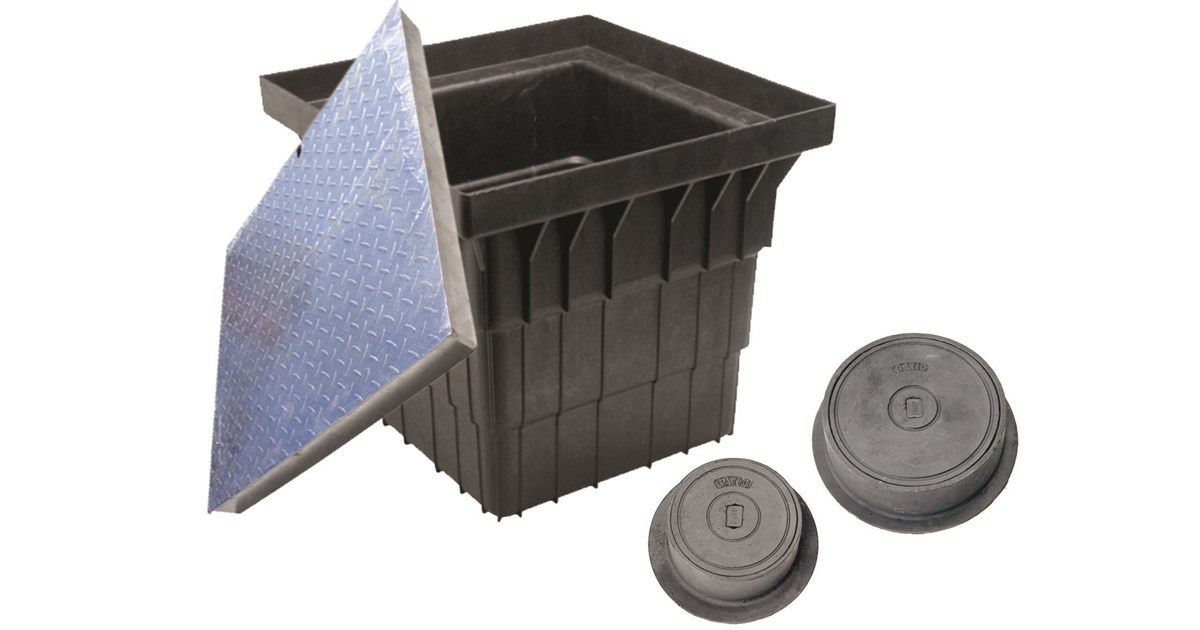

Flushing Point Covers
These boxes provide access points for pipeline flushing valves and hydrants. The size and type of box to be determined by the local authority in the region.
Toby Boxes
Toby Boxes provide a compact hinged lid access point for small bore water and gas valves, and is suitable for use in commercial, industrial and gas applications.

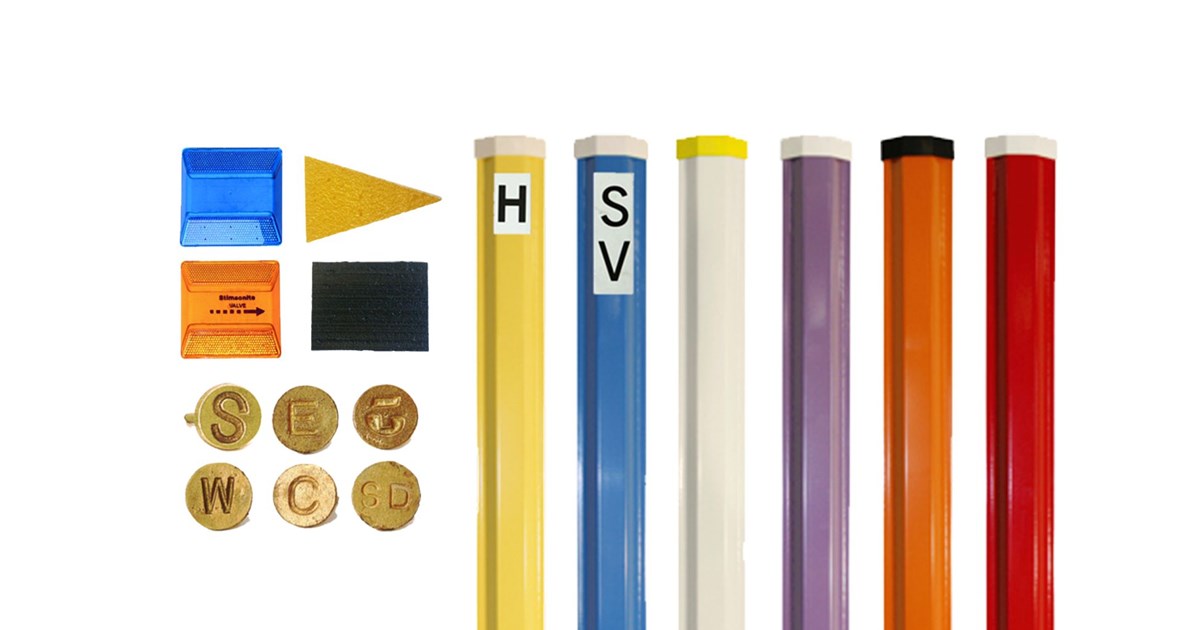

Markers
Marker posts, marker plates, kerb markers, delineators and reflectors are the products used to identify crucial pipeline assets such as valve and hydrant locations.
Each local authority will determine the types and colours required for each valve application.
