Industrial
CIVILPIPES is committed to a quality package solution for our customers and as such, we offer a range of industrial products to compliment our civil infrastructure products.
If you require further information regarding any of these products, or if you require assistance choosing the right product for your application, then contact our technical staff at CIVILPIPES who will be happy to assist.

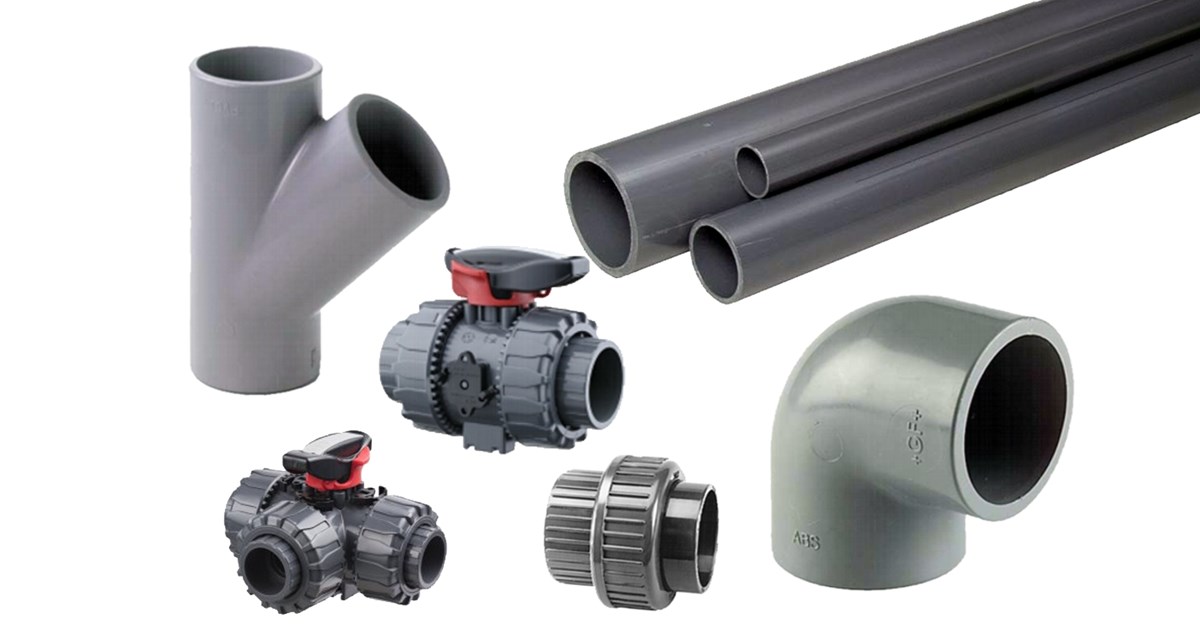

PVC/ABS Industrial Pipe Systems
CIVILPIPES offer a range of plastic pipe systems with distinct design features, such as temperature range, pressure rating and chemical resistance, to suit any general industrial application.
These pipe systems are available in a range of pressure classes to suit the design application. The imperial sizes are pressure rated by Schedule and the metric sizes are pressure rated by PN class.
PVC Sch 80 |
PVC-U Schedule 80 pipe system - pipe, fittings and valves
Size range: DN 15 - 300 Temp Range: 0 - 60 Deg C (Other schedule ratings and metric range available on request) |
|---|---|
CPVC Sch 80 |
CPVC Schedule 80 Pipe System - pipe, fittings and valves
Size Range: DN 15 - 300 Temp Range: 0 - 100 Deg C |
ABS |
ABS Pipe System - pipes, fittings and valves
Size Range: DN 10 - 200 Temp Range: - 40 to 70 Deg C |
Stainless Steel Pipe Systems
SS Pipe |
Stainless Steel Pipe Gr 316 - Seamless or Welded
Class Range: Schedule 10, 40, 80, 160 Size Range: DN 6 - 300 |
|---|---|
SS Fittings |
Stainless Steel Gr 316 Fittings
Size Range : DN 6 - 300 Class Range: Sch 10 - 160, 150 - 600 lb Range: Buttweld fittings, Socketweld fittings, Screwed BSP and NPT fittings, Flanges - weld, BSP and blank |
SS Valves |
Stainless Steel Gr 316 Valves
Size Range: DN 15 - 300 Range: Ball Valves - BSP and Flanged Knifegate valves, Control Valves |

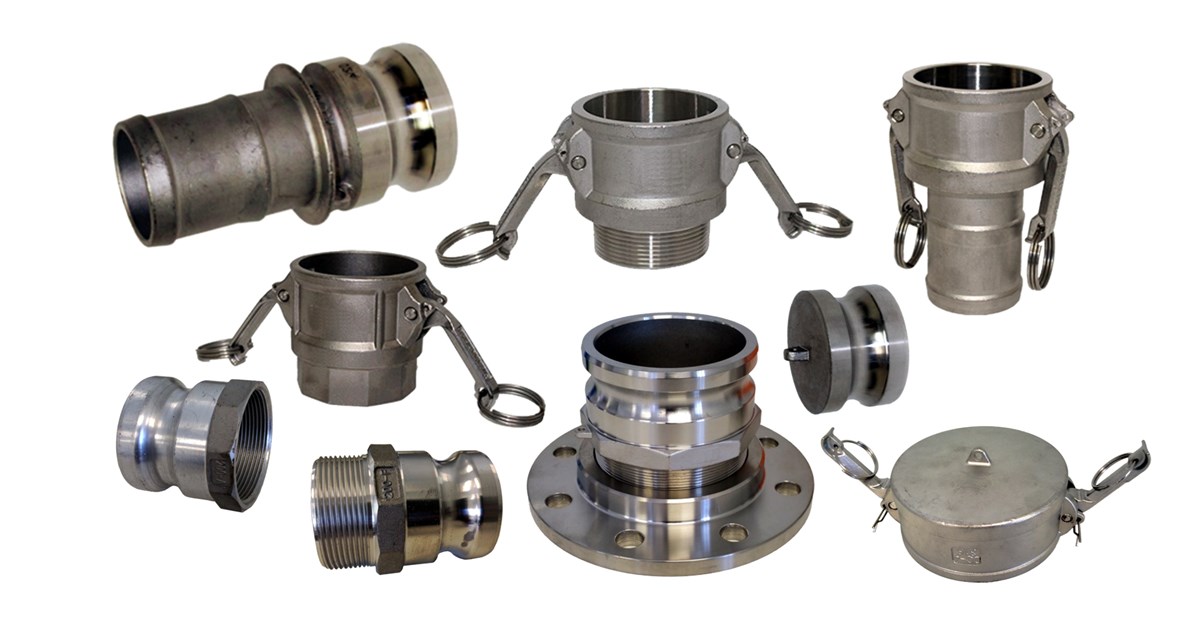

Camlock Fittings
Camlock fittings provide a quick connect and release joint for pipes and hoses.
Available in a wide range of materials with specific attributes of chemical resistance and strength, these fittings are an ideal choice for any municipal or industrial application.
Size Range |
DN 20 - DN 150 |
|---|---|
Materials |
Alum, 316SS, Poly, Brass and Ny-Glass |
Coupling type |
Male coupling end, Female coupling end |
End Connections |
Male BSP, Female BSP, Hosetail and Flanged |
